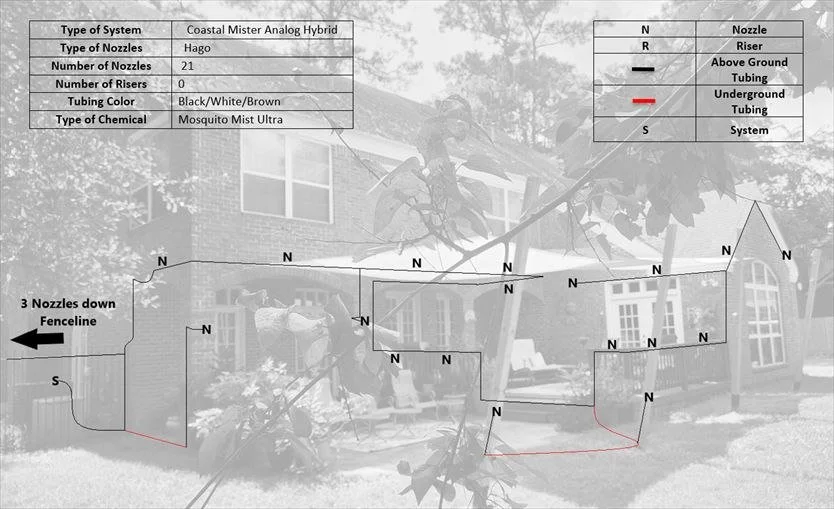

Nozzle Circuit Design and Placement

In any misting system, the nozzle circuit and overall layout play a critical role.

The goal of a well-designed misting system is balanced, strategic coverage across the environment. Proper nozzle spacing and thoughtful placement allow the mist to distribute evenly while maintaining consistent pressure throughout the circuit.

A thoughtfully designed system will:

• Establish a strong perimeter protection zone

• Provide coverage in areas where people gather

• Deliver consistent mist output throughout the circuit

• Provide reliable performance over time

When designed and installed using these principles, a misting system can provide effective, dependable insect control and a far more comfortable outdoor environment for the customer.
